Power Steering Relocation Kit Fits Honda Acura RSX 02-04 K Swap EG EK DC2 CRX Si JSR-DRP

Power Steering Relocation Kit Fits Honda Acura RSX 02-04 K Swap EG EK DC2 CRX Si

  • $179.95


*** IMPORTANT NOTE: Order processing can take up to 3 business days. Shipping timeframes start after the order processing has been completed. ***

Power Steering Relocation Kit Fits Honda Acura RSX 02-04 K Swap EG EK DC2 CRX Si

The Power Steering Relocation Kit is a simple kit which allows you to retain power steering while cleaning up the engine bay and moving the power steering pump down to where the factory AC compressor was originally mounted. The kit provides everything needed for an 02-04 RSX and k-swap vehicles running an 02-04 PS pump or 05-06 RSX using an 05-06 PS pump. No more trying to make electric setups work just to see problems arise later. This will retain factory hydraulic functionality with a clean installation. Our high-pressure line is designed to withstand the extreme pressure of the power steering system. The overflow fitting on the pump allows 360 swivel for best routing of the overflow hose and custom mounting. Depending on mounting location of the overflow bottle more hose may be needed, provided is 18" of hose. The bracket features dual mounting positions for multiple application, which allows you to raise and lower the pump depending on clearance with subframe and accessories.

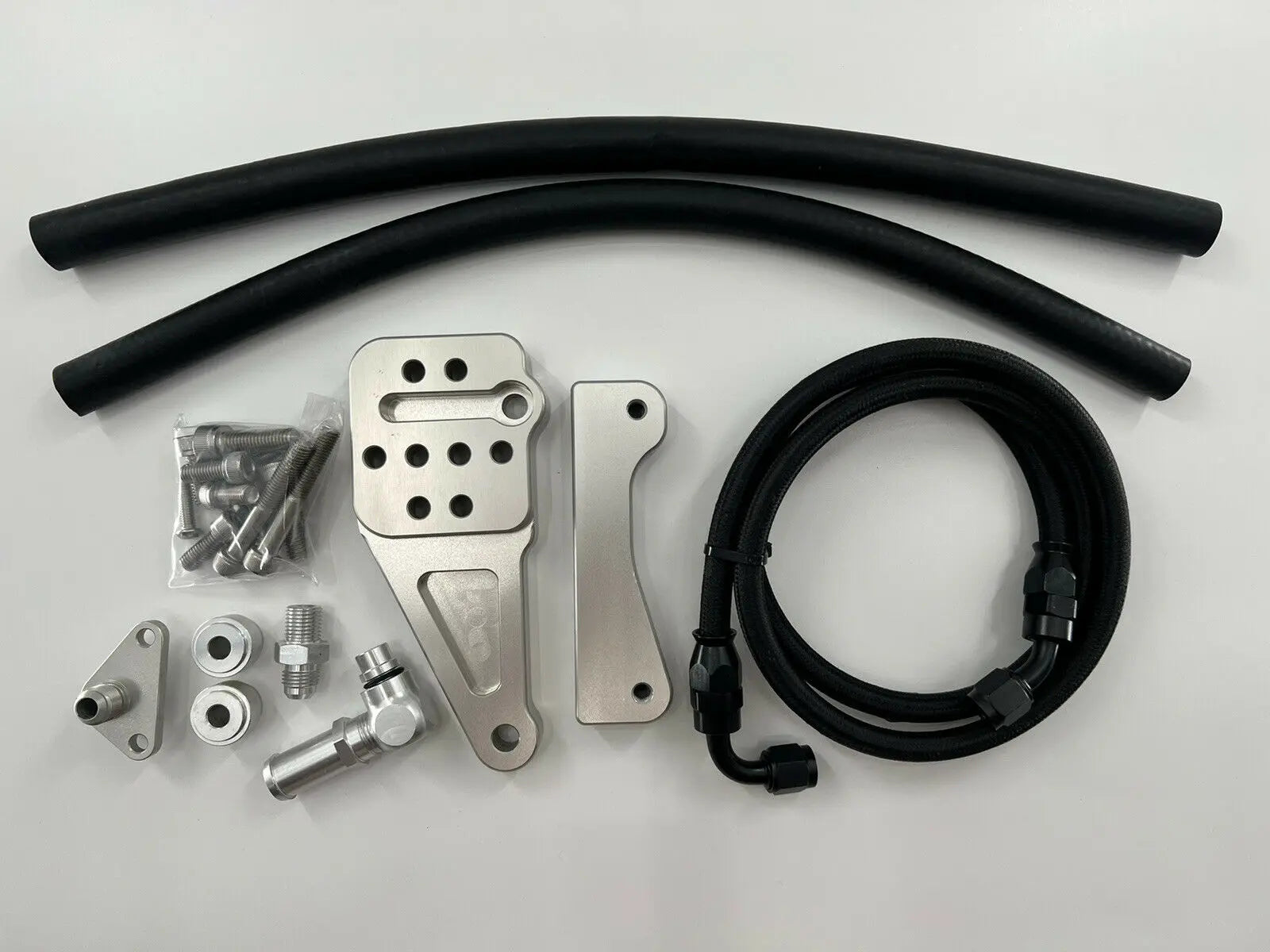

This kit will require removal of the AC. It includes the relocation bracket, -6AN (for 02-04 RSX) or -8AN (for 05-06 RSX) fitting for the power steering pump, new swivel overflow fitting for the pump, AN fitting for the rack, high-pressure hose, and 18" of hose for the overflow bottle and cooler, as well as all needed clamps and hardware. If you are using this on a k-swap car you may need to source your own 3/8 high pressure hose for the return from the rack to the overflow bottle.

Please note: 05-06 RSX feature a larger pump with greater flow. The car also comes with a larger diameter line and fitting at the rack.


Product Disclaimer:

Emissions Equipment Tampering Warning: In many states, tampering with your vehicle’s emissions equipment is unlawful. Our products are designed and sold for sanctioned off-road/competition non-emissions controlled vehicles only and may never be used on a public road or highway.

Using our products for street/road use on public roads or highways is prohibited by law unless a specific regulatory exemption exists (more information can be found on the SEMA Action Network website www.semasan.com/emissions for state-by-state details in the USA).

CARB-Restricted Areas: CARB-Restricted products, will not be shipped to state of California under any circumstatences.

Official Air Resource Board Link: ARB State Adoption Link

Customer Responsibility: It is the responsibility of the installer and/or user of this product to ensure compliance with all applicable local and federal laws and regulations. Please check with your local vehicle authority before purchasing, using, or installing any of our products.

By proceeding with the purchase and use of our products, customers affirm their commitment to adhere to the terms outlined in this comprehensive product disclaimer. We reserve the right to update this disclaimer as necessary.
