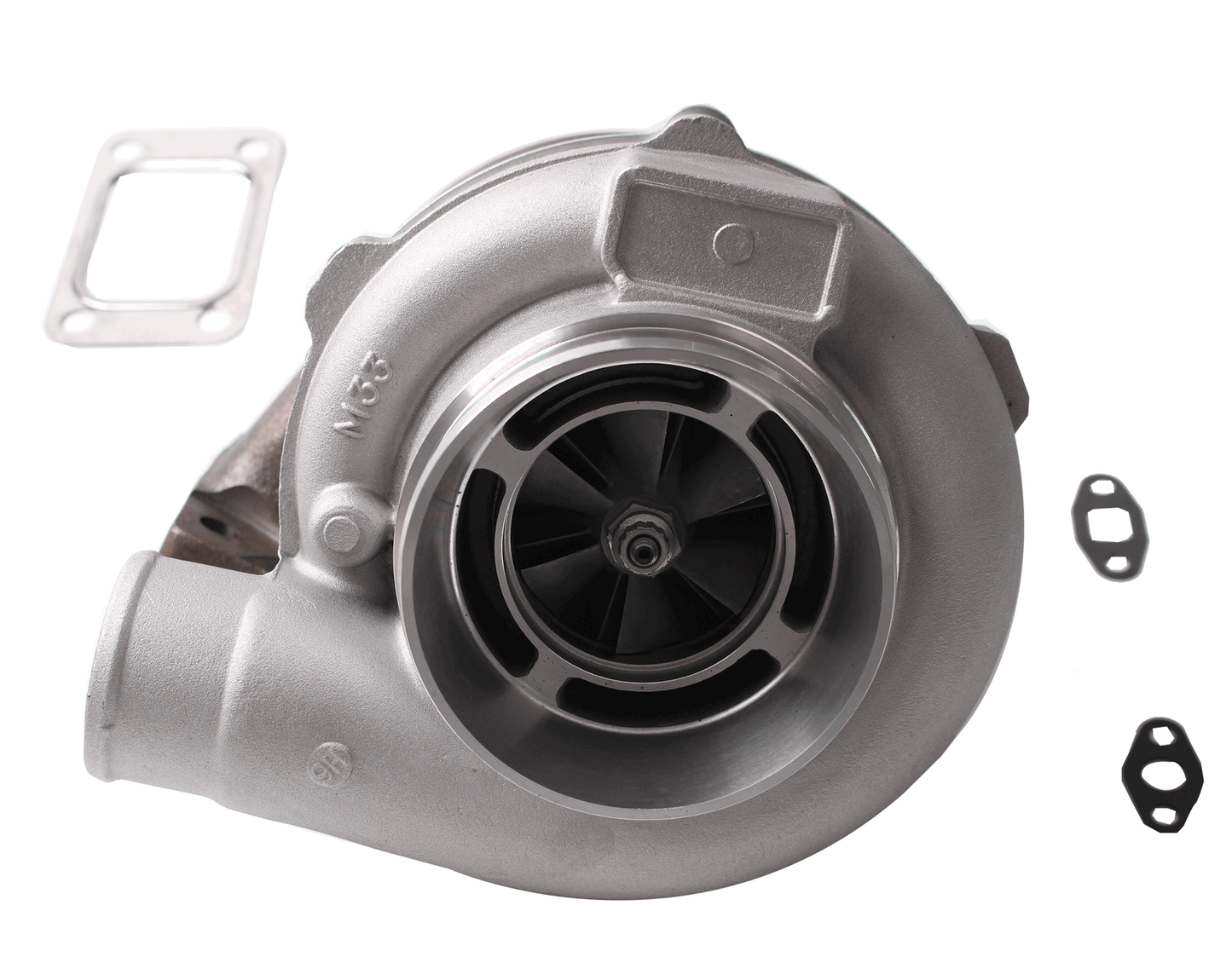

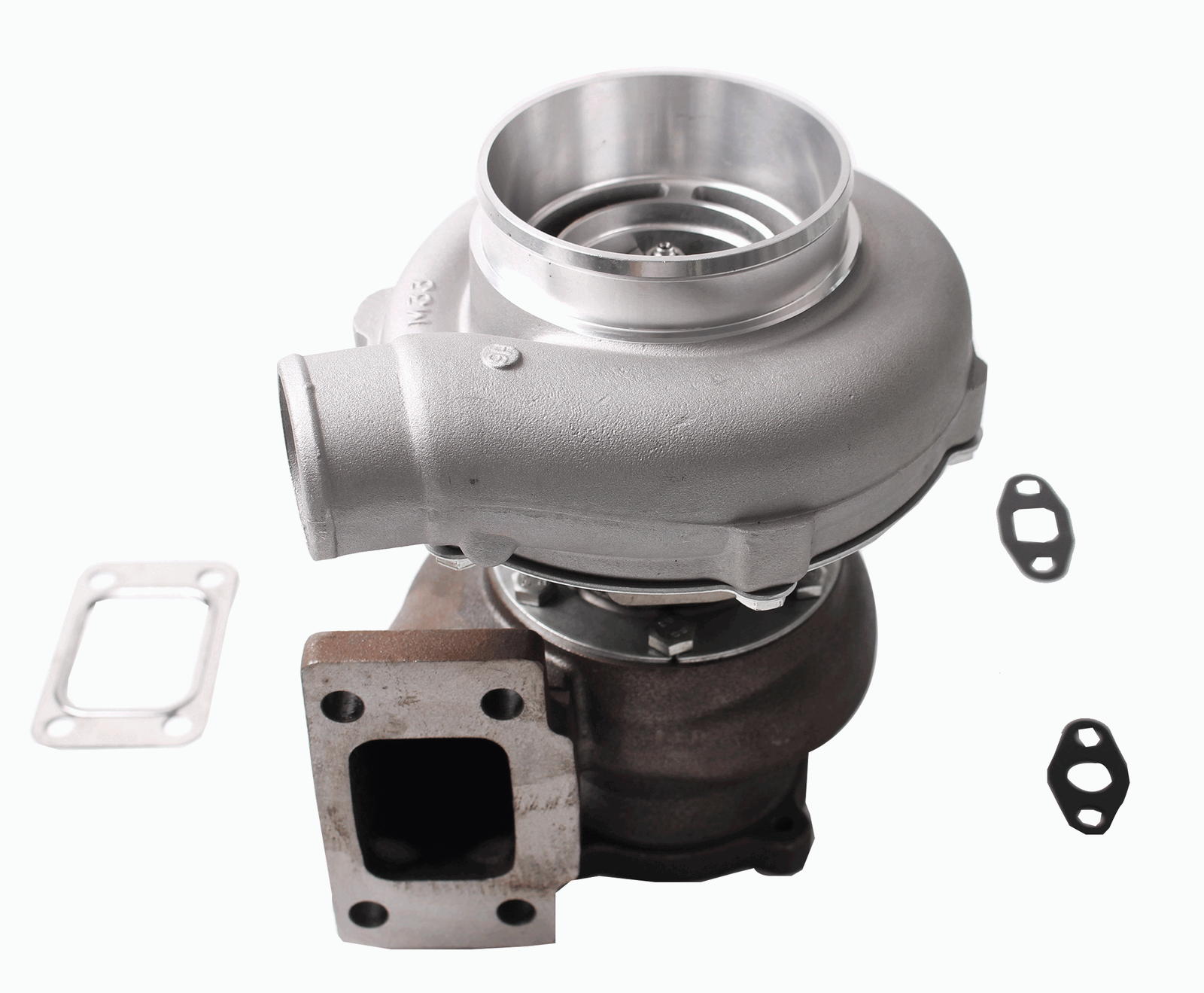

GEN II GTX3076R Journal Bearing Billet Wheel
Our GT3076R Turbo is meticulously designed to bring a substantial power boost to your vehicle, emphasizing durability, strength, and precision engineering.
Specification:
- Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange
- Exhaust Outlet Flange: 4-Bolt Flange
- Turbine Trim: 74.2
- Turbine Inducer Diameter: 64.8mm
- Turbine Exducer Diameter: 55.8mm
- Turbine A/R: 0.82
- Compressor Trim: 48.1
- Compressor Inducer Diameter: 52.7mm
- Compressor Exducer Diameter: 76mm
- Compressor A/R: 0.6
- Oil Inlet: M121.25 & 2M8*1.25
- Oil Outlet: 2M81.25
- Water: M18*1.5
- Wastegate: w/o Wastegate
- Thrust Bearing: 270 Degrees
- Turbo Type: Individual
- Bearing: Journal Bearing
- Cooling Type: Water + Oil
- Accessories: You will receive exactly what is shown in the picture above
- Package Size: 30 x 28 x 24cm
- Package Weight: 8750g
Features:
-
Product Material:
- Turbine Housing: Ductile iron QT450-10 - temperature resistant up to 700℃
- Steel Turbine Wheel: K418 alloy - high oxidation stability and resistance up to 900℃
- Compressor Housing: ZL104 aluminum with lightweight
- Compressor Wheel/Blades: Cast aluminum blades – superior air tightness & corrosion resistance
-
Product Performance:
- Cost-effective turbo that increases power by 20-40% for your car.
- Leveraging rich experience in turbo production and an in-house factory.
- High-Speed oil seal ring and precision clearance for optimal performance.
- Built for durability and strength, ensuring longevity under demanding conditions.
Upgrade your driving experience with our Individual Turbo, where cutting-edge materials and precision engineering come together to deliver enhanced power, efficiency, and durability for your vehicle.
