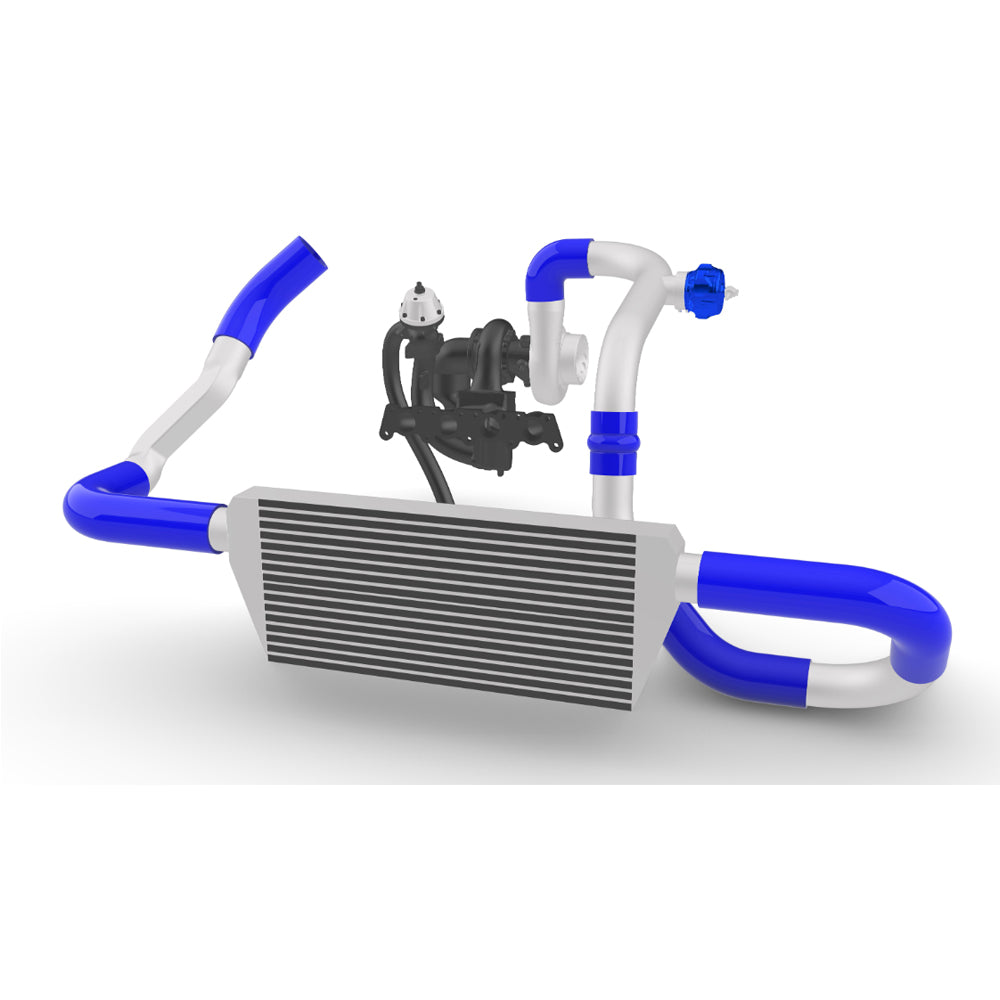

TWIN SCROLL TOP MOUNT TMA16 TURBO KIT + FRONT MOUNT INTERCOOLER VW 1.8 20V TRANSVERSAL, BLACK HOSES, TURBO NOT INCLUDED

15 days required to produce'

===========================================

TWIN SCROLL TOP MOUNT TMA16 TURBO KIT + FRONT MOUNT INTERCOOLER VW 1.8 20V TRANSVERSAL, BLACK HOSES, TURBO NOT INCLUDED

===========================================

Application: Golf GTI Mk4 with 1.8L 20V engine.

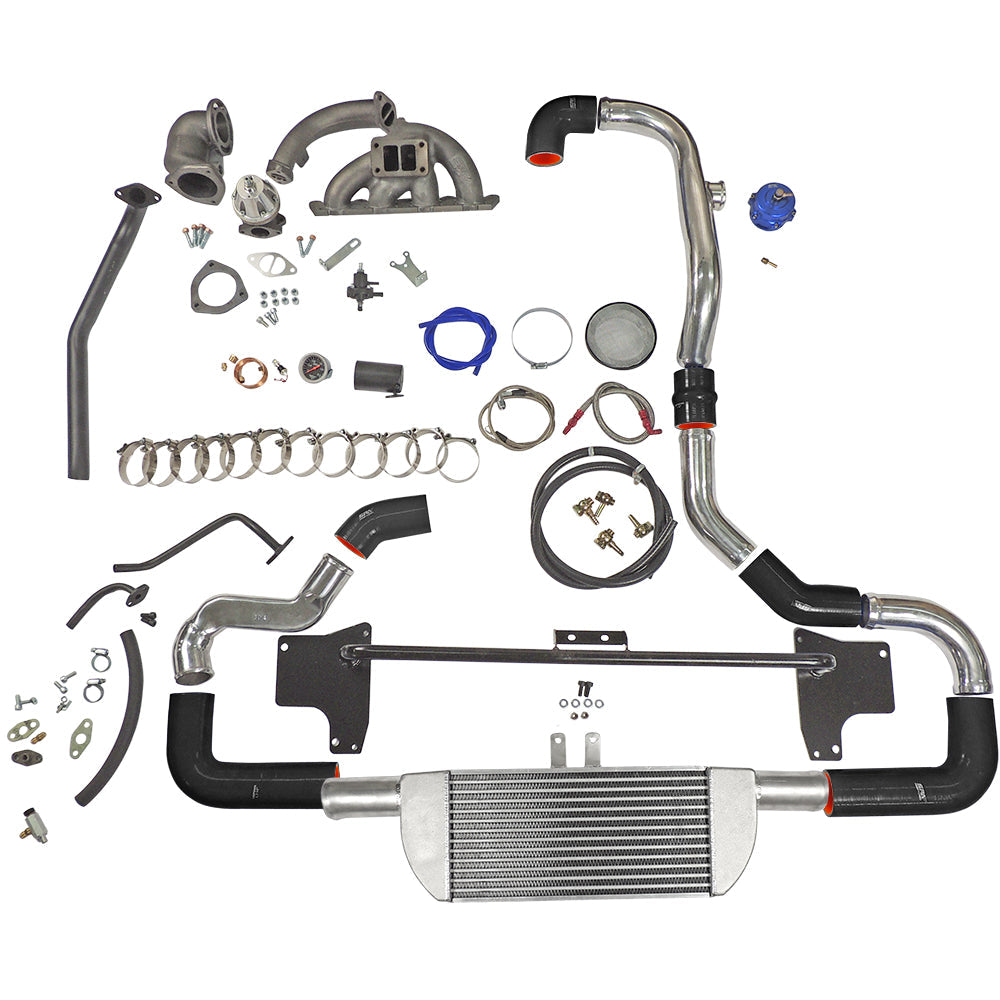

Includes:

- 2 1/2" polished aluminum tubes.

- Silicone hoses

- Stainless steel clamps

- Turbine cooling hoses/fittings

- Special bumper support for Golf MK4.

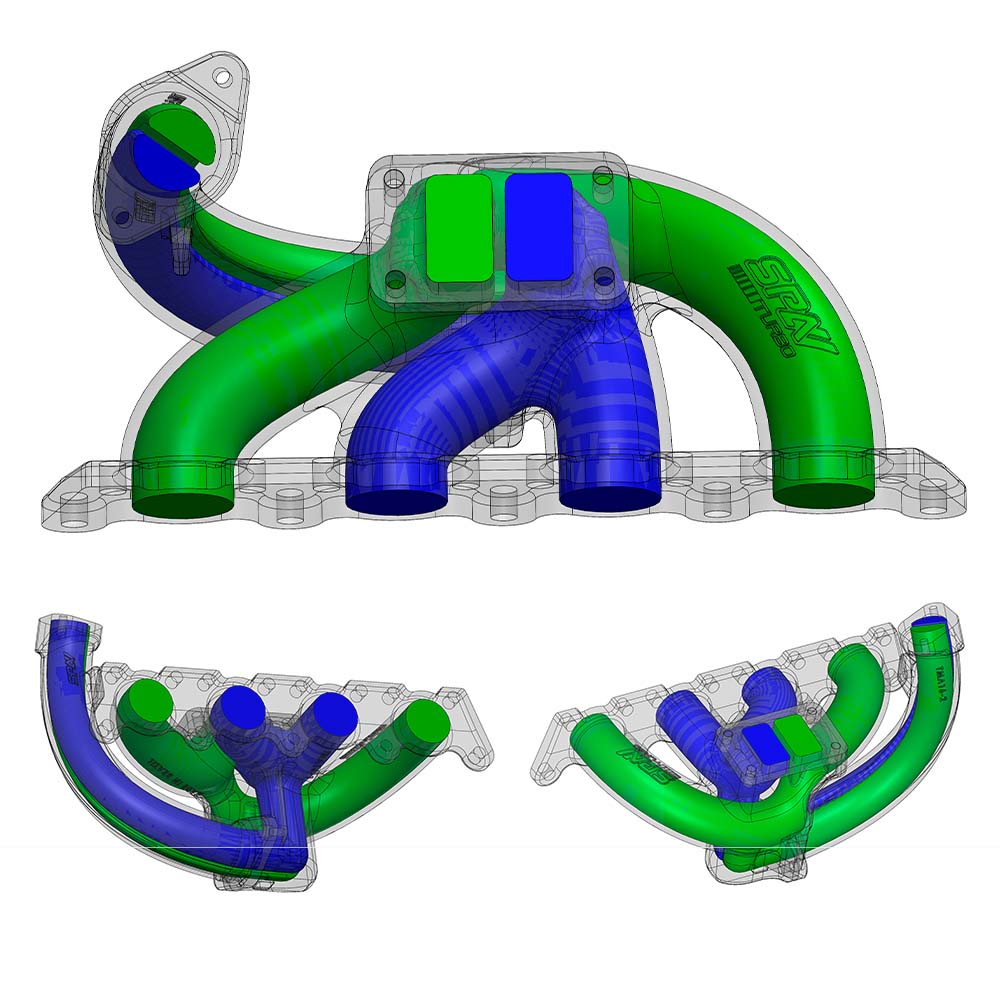

Discover details of the TMA16 turbo manifold:

The darling of the transverse 1.8 20V has just evolved! The best-selling turbo manifold on the market (TMA06) has evolved into TMA16 EVOLUTION! After much study of our engineering sector, together with specialist preparers in this mechanics, a new project full of improvements emerged.

- Better performance, with optimized flow thanks to redesigned ducts.

- Perfect position of the wastegate, allowing the application of large valves, facilitating pressure regulation and possible maintenance.

- Ideal turbine positioning for building a pressurization with smooth curves and accommodates large turbines such as .70, GT35 and similar.

- Includes free cast initial exhaust outlet and 3” flange for making the rest of the exhaust, facilitating application.

Application: 1.8 20V transverse engines (VW Golf / Audi A3 and other models)

- Turbine position: Up (compressor housing to the left side - driver)

- Flange for hot housing: Standard T3

- Wastegate outlet: "i' mounting pattern (2 holes)

- Internal diameter of the runners: 42mm

- Material: Cast iron

Discover the details of the NTSPD09 Intercooler:

- 100% aluminum.

- Recommended power range: 300 – 450 hp

- Core dimensions: 400mm x 190mm x 50mm.

- Overall dimensions: 725mm x 240mm x 67mm.

- Inlet/Outlet: 2 ½”

- Tube & fin type core

Discover the details of the Blow off X-Flow V2 50mm.

- Internal components with anti-friction heat treatment, which guarantees less wear and longer service life.

- Supplied with v-band clamp, o-ring and aluminum adapter flange.

- Comes with a spring for boost values over 1.2bar assembled and includes a lower load spring for boost values under 1.2bar.

- Piston sealing system.

Obs:

- Product images are for illustrative purposes only. Components may be changed according to stock availability.

=======================================================
OFFICIAL TURBO SPA

Specialist in high performance parts since 1990.
ATTENTION: It is highly recommended having the instalation made by a specialized professional. SPA Turbo is not responsible for incorrect installation or misuse of the product.
